Drawing primitives

This page shows how to use the most common drawing helpers in DrawZero. The goal is to help you make nice sketches even if you are new to programming. We will focus on color names, points, and shapes. Read Transparency (alpha) and line thickness (line_width) when you want to control see-through effects or stroke sizes.

If you want to move a point around with turtle-style steps, open the Pt helper reference. For smooth color transitions or animated trails, check the Gradient helper reference.

Once you feel comfortable drawing static shapes, jump to the Animations guide. It explains how to put your drawings inside the frame loop, control the speed with tick(), and even make motion trails.

Each example starts with the same import:

from drawzero import *

After the import you can call the functions one by one. The virtual canvas is 1000 by 1000 units. Coordinates are always written as (x, y).

Named colors for quick sketches

You can pass the color as a short text such as 'red', 'white', 'black', 'gold', 'skyblue', and many other names. The library understands hundreds of names and converts them to the right RGB values for you.

line(color='red', start=(100, 100), end=(200, 200), *args)

Draws a straight segment from the start point to the end point.

Tips

  • start and end are coordinate pairs. (0, 0) is the top-left corner, (1000, 1000) is the bottom-right corner.
  • The default line is red from (100, 100) to (200, 200).

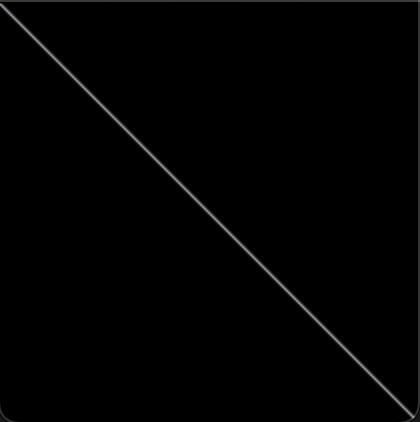

Example – diagonal line in white

from drawzero import *

line('white', (0, 0), (1000, 1000))

This draws a thin white line from the top-left corner to the bottom-right corner.

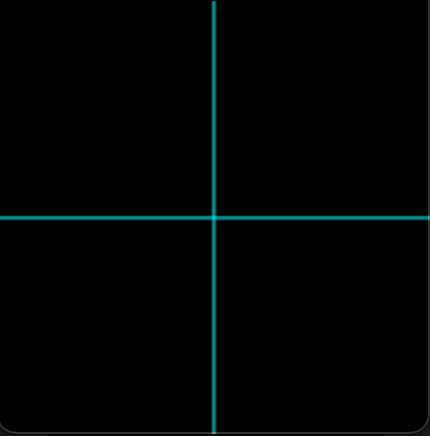

Example – crosshair in cyan

from drawzero import *

line('cyan', (500, 0), (500, 1000))
line('cyan', (0, 500), (1000, 500))

The two calls create a vertical and a horizontal line that meet at the center.

circle(color='red', pos=(100, 100), radius=10, *args)

Draws the outline of a circle.

Tips

  • pos is the center point of the circle.
  • radius is how far the circle extends from the center in canvas units.

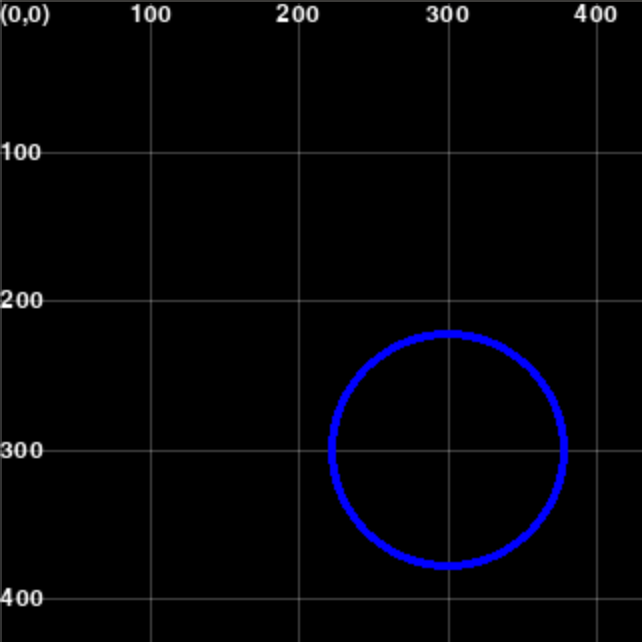

Example – blue ring around a point

from drawzero import *

circle('blue', (300, 300), 80)

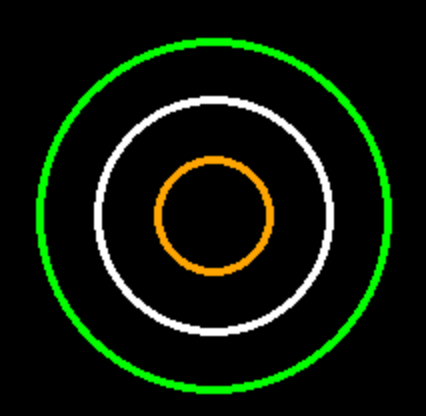

Example – three concentric circles

from drawzero import *

center = (750, 200)
circle('orange', center, 40)
circle('white', center, 80)
circle('green', center, 120)

filled_circle(color='red', pos=(100, 100), radius=10, *args)

Draws a circle filled with the chosen color.

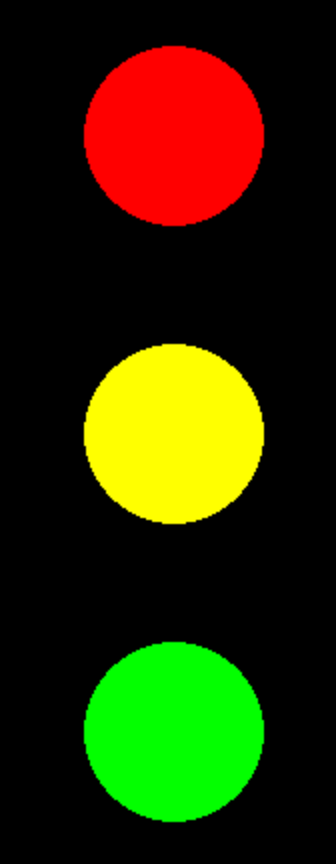

Example – traffic light dots

from drawzero import *

x = 200
filled_circle('red', (x, 200), 60)
filled_circle('yellow', (x, 400), 60)
filled_circle('green', (x, 600), 60)

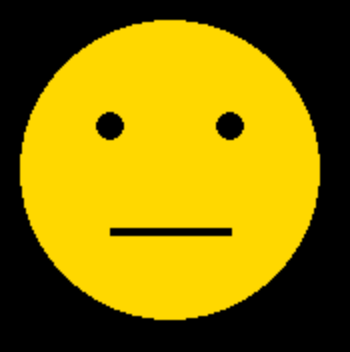

Example – sun with a face

from drawzero import *

filled_circle('gold', (800, 200), 100)
filled_circle('black', (760, 170), 10)
filled_circle('black', (840, 170), 10)
line('black', (760, 240), (840, 240))

The last line reuses the knowledge from the previous section to draw a simple smile.

Colors as RGB triples

Sometimes you want a very specific shade that does not have a name. In that case you can pass a tuple (R, G, B) where each value goes from 0 to 255. (255, 0, 0) is pure red, (0, 255, 0) is pure green, (0, 0, 255) is pure blue. Mixing values gives new colors.

rect(color='red', pos=(100, 100), width=500, height=200, *args)

Draws only the border of a rectangle.

  • pos is the top-left corner of the rectangle.
  • width stretches the rectangle to the right.
  • height stretches it downward.

Example – teal frame using RGB

from drawzero import *

rect((0, 128, 128), (100, 100), 300, 200)

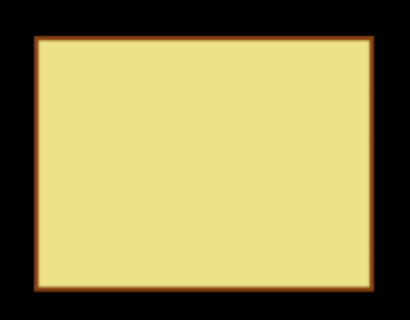

Example – picture frame around a filled area

from drawzero import *

filled_rect((240, 230, 140), (200, 200), 400, 300)
rect((139, 69, 19), (200, 200), 400, 300)

The first call paints the background. The second call, using rect, keeps only the outline.

filled_rect(color='red', pos=(100, 100), width=500, height=200, *args)

Draws a solid rectangle.

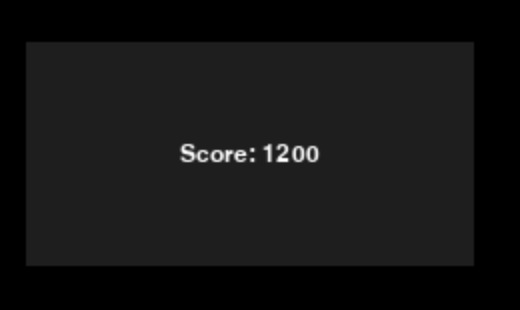

Example – basic HUD panel

from drawzero import *

filled_rect((30, 30, 30), (50, 50), 300, 150)
text('white', 'Score: 1200', (70, 90))

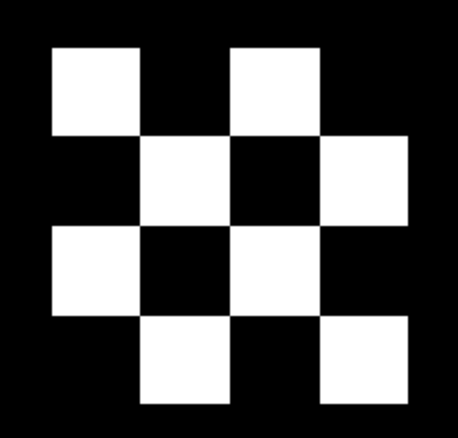

Example – checkerboard tile

from drawzero import *

for row in range(4):
    for col in range(4):
        color = (255, 255, 255) if (row + col) % 2 == 0 else (0, 0, 0)
        filled_rect(color, (100 + col * 60, 100 + row * 60), 60, 60)

This loops over 16 squares and chooses white or black using the RGB tuples.

Color helper constant C

You can also import the special object C that contains every named color as an attribute.
This works great in modern IDEs: typing C. shows a dropdown list of color names, and the IDE can warn you when the name is wrong.

from drawzero import C, line

line(C.lightskyblue, (100, 500), (900, 500))

If you prefer, you can import both styles together:

from drawzero import *, C
filled_circle(C.magenta, (500, 500), 120)
Full list of named colors available through C (665 items)

More drawing tools

The following helpers build on the same ideas. You can mix text colors, RGB tuples, or values from C with all of them.

grid()

Draws a helpful coordinate grid. Lines appear every 100 units with light labels. Use it when you are planning positions.

Example – show the grid for planning

from drawzero import *

grid()

You can draw other shapes on top of the grid and then remove the grid() call once you finish planning.

polygon(color='red', *points)

Draws the outline of a polygon. Pass each corner as its own (x, y) pair. The function joins the last point back to the first point automatically.

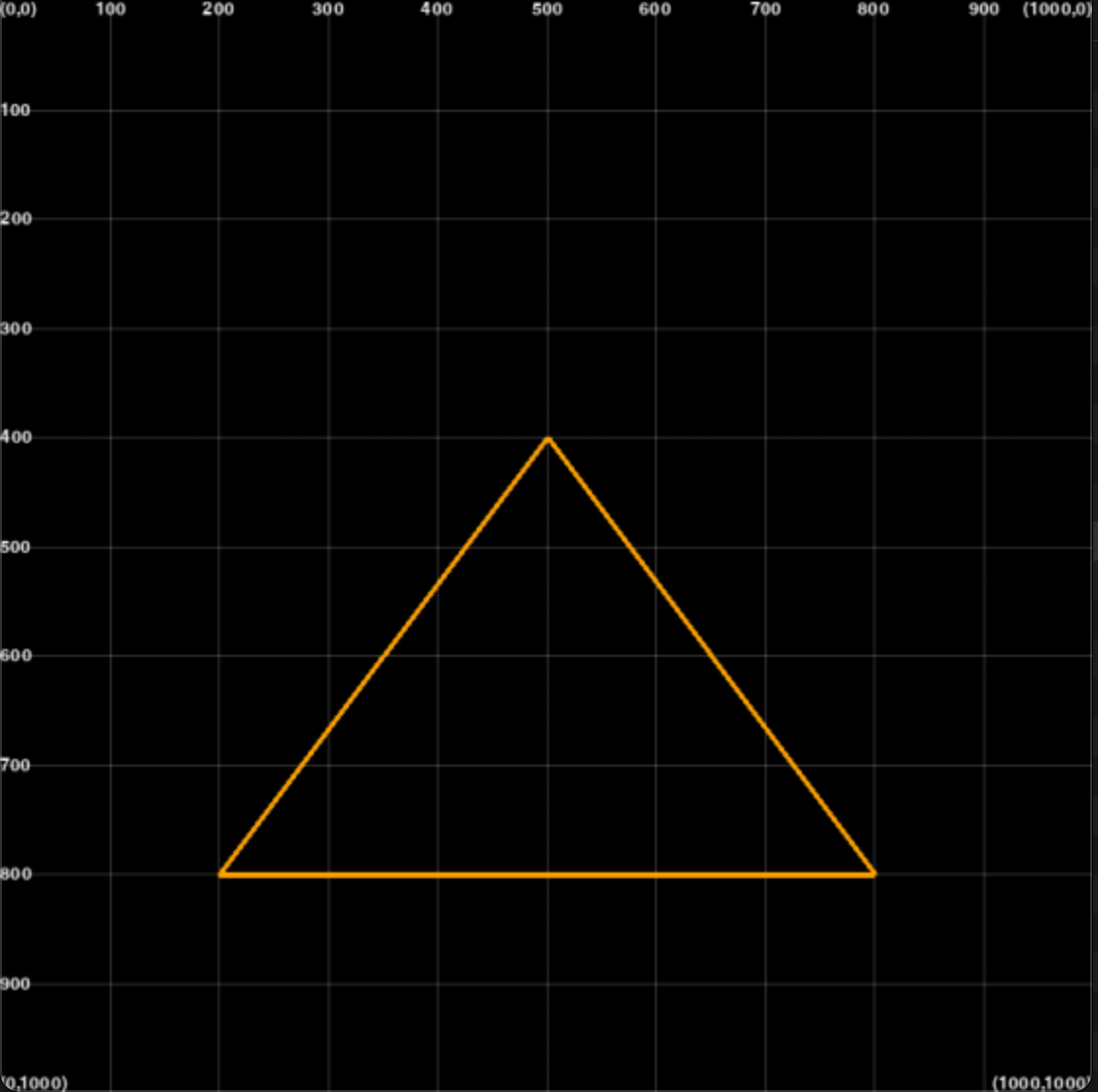

Example – simple triangle

from drawzero import *

polygon('orange', (200, 800), (500, 400), (800, 800))

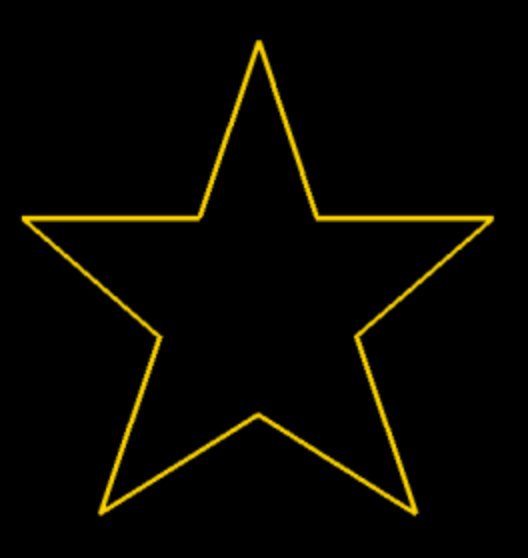

Example – star outline

from drawzero import *

points = [
    (500, 200),
    (560, 380),
    (740, 380),
    (600, 500),
    (660, 680),
    (500, 580),
    (340, 680),
    (400, 500),
    (260, 380),
    (440, 380),
]
polygon('gold', *points)

filled_polygon(color='red', *points)

Fills the inside of the polygon using the same point format.

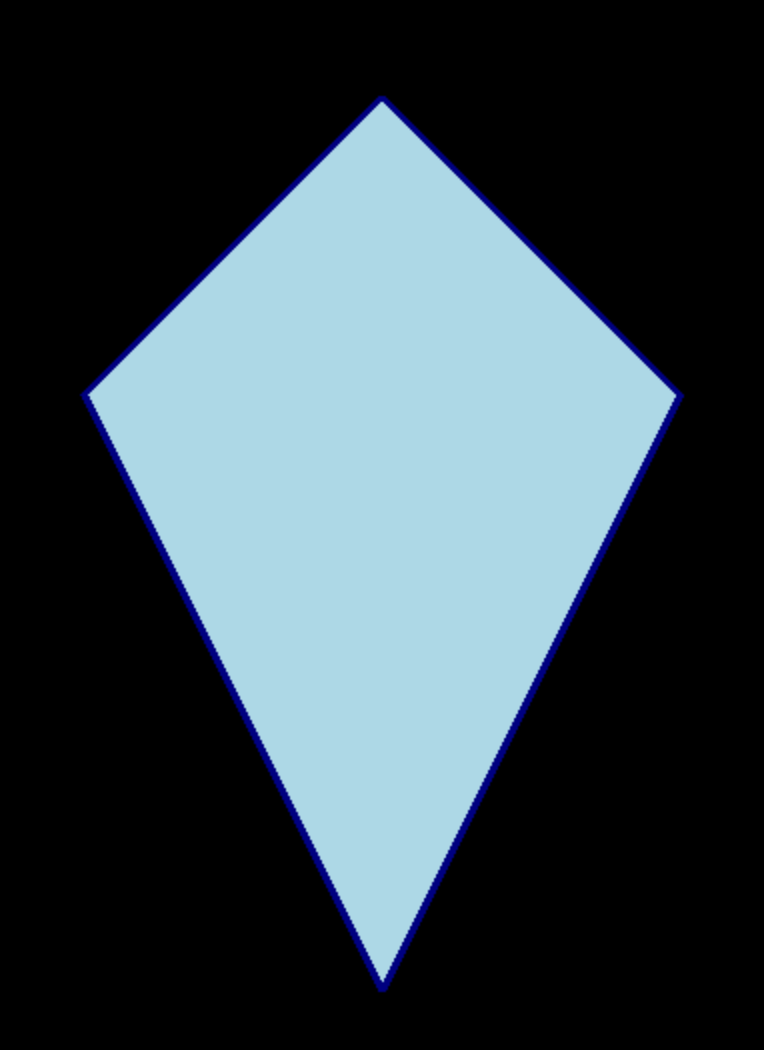

Example – kite shape with shadow

from drawzero import *

shape = [(500, 200), (700, 400), (500, 800), (300, 400)]
filled_polygon('lightblue', *shape)
polygon('navy', *shape)

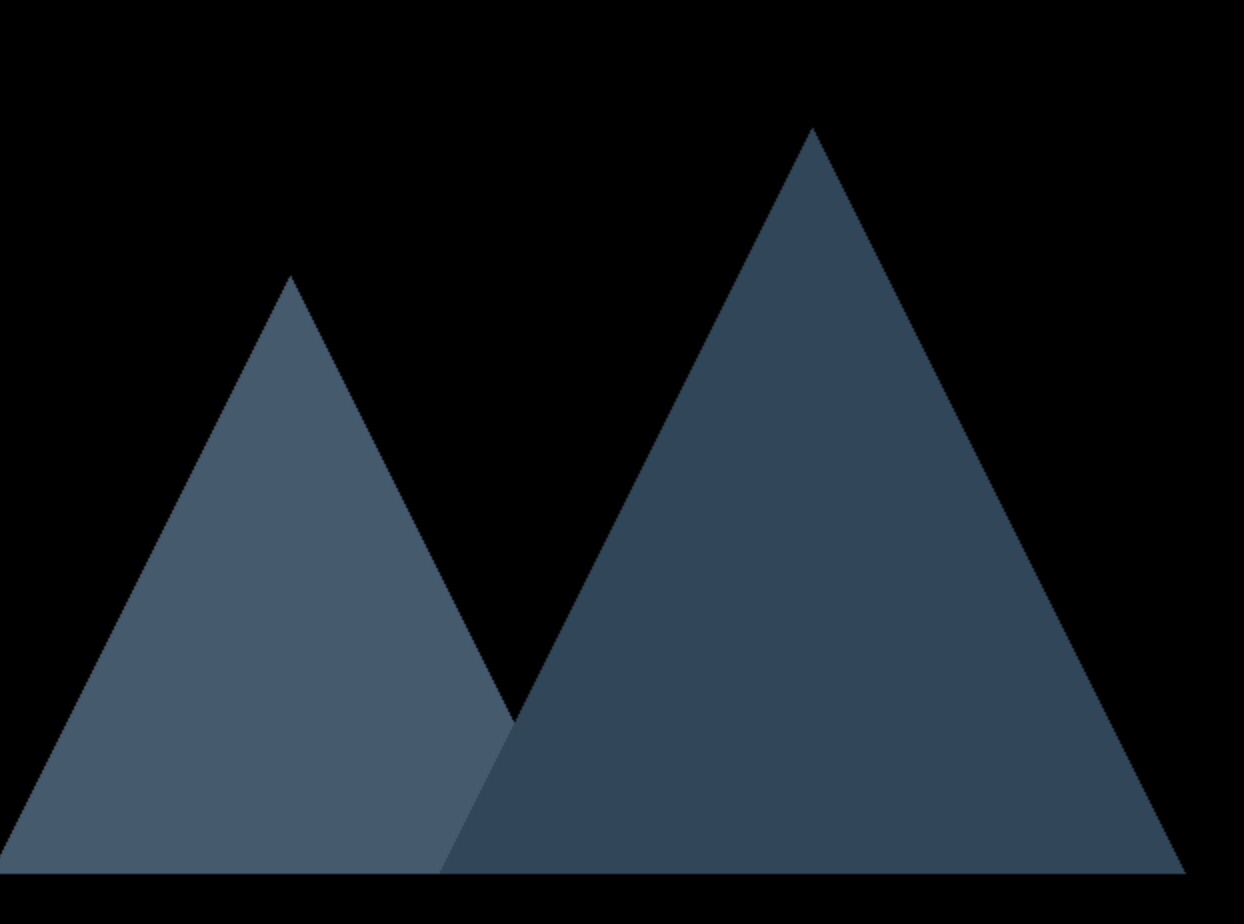

Example – mountain silhouettes

from drawzero import *

mountain1 = [(0, 800), (200, 400), (400, 800)]
mountain2 = [(300, 800), (550, 300), (800, 800)]
filled_polygon((70, 90, 110), *mountain1)
filled_polygon((50, 70, 90), *mountain2)

The second polygon uses RGB tuples for a darker shade.

text(color='red', text='Hello!', pos=(100, 100), fontsize=24, align='..')

Draws text on the canvas.

  • text is the string that you want to show.
  • pos marks the anchor point.
  • fontsize controls the size in pixels.
  • align decides how the anchor sticks to the text. The first symbol handles horizontal alignment ('<' for left, '.' for center, '>' for right). The second symbol handles vertical alignment ('^' for top, '.' for middle, 'v' for bottom).

Example – centered scoreboard

from drawzero import *

text('white', 'Level Complete!', (500, 120), 48, '.^')

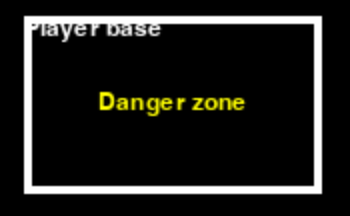

Example – labels near shapes

from drawzero import *

rect('white', (150, 700), 200, 120)
text('white', 'Player base', (150, 700), 24, '<^')
text('yellow', 'Danger zone', (250, 760), 24, '..')

fill(color='red')

Fills the whole canvas with a solid color. This is very useful for the background before you draw other objects.

Example – night sky background

from drawzero import *

fill((10, 10, 35))
filled_circle('white', (200, 150), 5)
filled_circle('white', (600, 220), 4)

Example – quick color reset

from drawzero import *

fill('white')
line('black', (100, 100), (900, 900))

Calling fill('white') removes old drawings by painting the entire canvas white before you start again.

Ellipses, arcs, and rotated rectangles

These helpers let you create stretched circles and tilted rectangles. They follow the same color rules you saw before: you can use color names, RGB triples, or values from C. For transparency and stroke size tips, read Transparency (alpha) and line thickness (line_width).

ellipse(color='red', pos=(100, 100), width=500, height=200, *args, alpha=255, line_width: int = None)

Draws the outline of an ellipse. The ellipse fits inside an invisible rectangle whose top-left corner is pos, whose width extends to the right, and whose height extends downward.

Tips

  • Think of the ellipse as a squashed circle. When width equals height you get a perfect circle outline.
  • Placing the ellipse in the middle of the canvas is easy when you combine it with grid() from the previous section.

Example – planet orbit guide

from drawzero import *

grid()
ellipse('white', (200, 300), 600, 200)
filled_circle('yellow', (500, 400), 40)
filled_circle('dodgerblue', (750, 400), 20)

The ellipse marks the orbit, while the filled circles show the star and the planet.

Example – stage spotlight border

from drawzero import *

fill((10, 10, 25))
ellipse('gold', (250, 150), 500, 700)
text('white', 'Talent Show', (500, 220), 48, '.^')

The tall ellipse surrounds the title like a glowing frame.

filled_ellipse(color='red', pos=(100, 100), width=500, height=200, *args, alpha=255)

Fills the entire ellipse with color, using the same bounding box idea as ellipse.

Tips

  • Layer multiple filled ellipses to build gradients or shadows.
  • Use them to fake soft shapes such as clouds, ponds, or stadium tracks.

Example – calm pond with reflection

from drawzero import *

fill((120, 180, 255))
filled_ellipse((70, 120, 200), (200, 650), 600, 220)
filled_ellipse((150, 200, 255), (260, 690), 480, 140)

The second, smaller ellipse sits on top to suggest a highlight on the water.

Example – running track lanes

from drawzero import *

fill((30, 120, 30))
for offset in range(0, 80, 20):
    filled_ellipse('sienna', (150 + offset, 200 + offset), 700 - 2 * offset, 400 - 2 * offset)

The loop paints four nested ellipses to imitate the rounded corners of a stadium track.

arc(color='red', pos=(100, 100), width=500, height=200, start_angle=45, stop_angle=270, alpha=255, line_width: int = None)

Draws part of an ellipse outline between two angles. The angles are measured in degrees, where 0 points to the right and the values grow counterclockwise.

Tips

  • Use a difference between start_angle and stop_angle smaller than 360 to create a curved slice.
  • Try combining arc with filled_circle eyes or gauges to add expressive details to your drawings.

Example – smiling mouth on a face

from drawzero import *

fill((255, 224, 189))
filled_circle('black', (420, 360), 15)
filled_circle('black', (580, 360), 15)
arc('brown', (360, 420), 280, 160, 200, 340)

Here the arc starts on the left side (near 200 degrees) and ends on the right side (near 340 degrees), leaving a curved smile on the bottom.

Example – progress gauge

from drawzero import *

fill((20, 20, 30))
ellipse('gray', (250, 250), 500, 500)
arc('lime', (250, 250), 500, 500, 180, 360)
text('white', '50%', (500, 520), 64, '.^')

The green arc begins on the left (180 degrees) and ends on the right (360 degrees), covering the lower half of the circle li ke a progress meter.

rect_rotated(color='red', pos=(100, 100), width=500, height=200, angle=0, *args, alpha=255, line_width: int = None)

Draws the outline of a rectangle that has been rotated around its center. The unrotated rectangle would start at pos and would measure width by height. Positive angles turn the shape counterclockwise.

Tips

  • Sketch the rectangle with rect first, then switch to rect_rotated when you know the right angle.
  • Small angles (like 15 or 20 degrees) are great for giving objects a sense of motion.

Example – tilted photo frame

from drawzero import *

fill((240, 235, 220))
rect_rotated('saddlebrown', (250, 200), 500, 350, -12)
filled_rect('white', (270, 220), 460, 310)
text('black', 'Family Trip', (500, 350), 36, '.^')

The thin negative angle makes the frame lean to the right.

Example – warning sign

from drawzero import *

fill((40, 40, 40))
rect_rotated('yellow', (350, 300), 300, 300, 45)
text('black', '!', (500, 450), 180, '.^')

Rotating a square by 45 degrees turns it into a diamond-shaped outline.

filled_rect_rotated(color='red', pos=(100, 100), width=500, height=200, angle=0, *args, alpha=255)

Fills the rotated rectangle using the same center and angle rules as rect_rotated.

Tips

  • Combine filled_rect_rotated with rect_rotated of a different color to get borders.
  • Use several rotated rectangles together to build windmill blades or paper pinwheels.

Example – rotating propeller art

from drawzero import *

fill((15, 15, 35))
for blade in range(4):
    filled_rect_rotated('deepskyblue', (460, 360), 80, 280, blade * 45)
filled_circle('white', (500, 500), 60)

Each iteration draws one blade by rotating the same rectangle.

Example – cozy rug on the floor

from drawzero import *

fill((120, 85, 60))
filled_rect_rotated((200, 120, 70), (250, 250), 500, 320, 8)
rect_rotated((120, 60, 30), (250, 250), 500, 320, 8)

The filled rectangle creates the fabric, and the outline adds a stitched border.
