DrawZero Examples

This page contains a gallery of examples demonstrating the capabilities of the DrawZero library.

Getting Started

These examples show the very basics of getting an image on the screen.

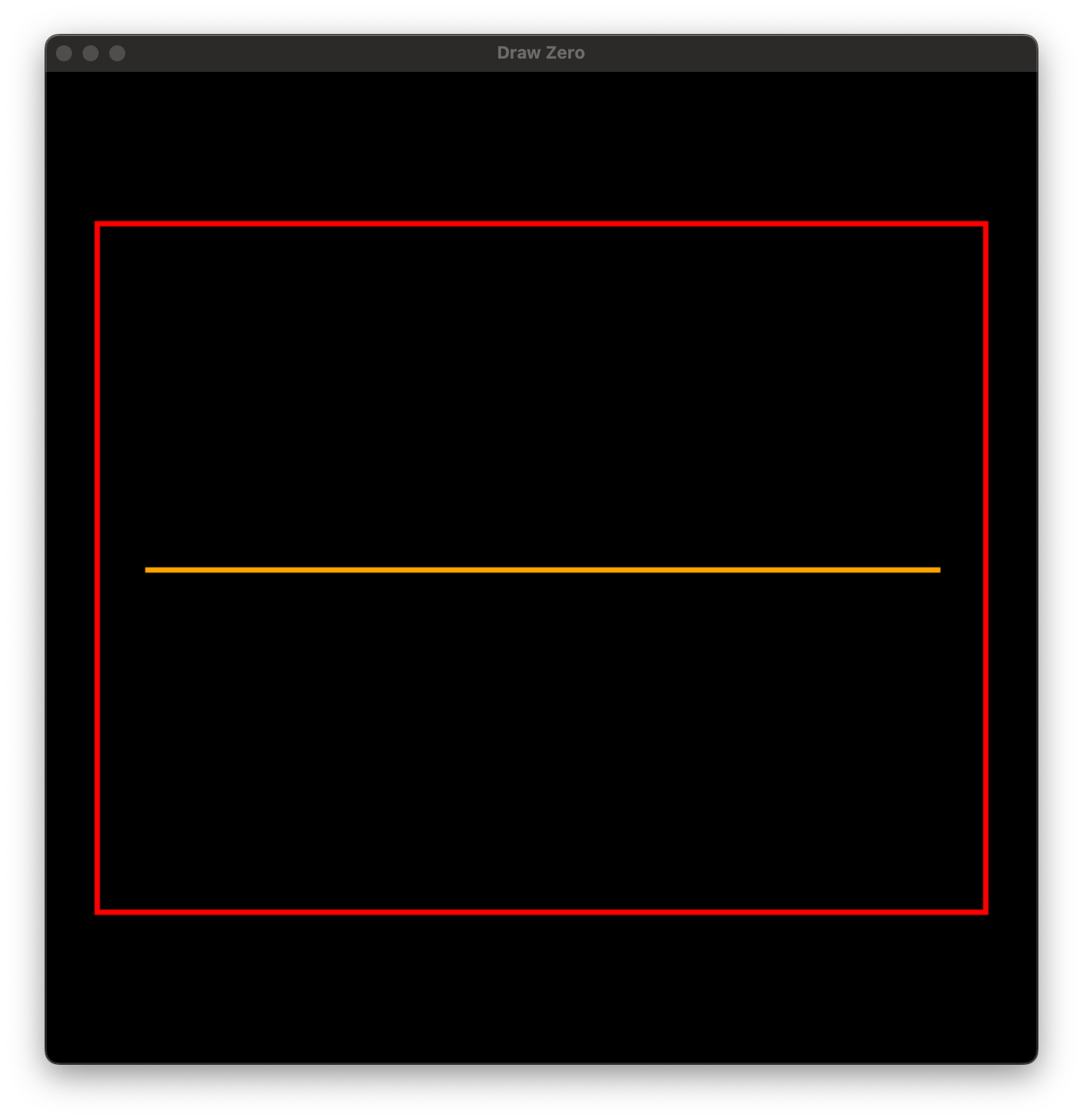

00_hello_world.py

00_hello_world.py

# Just import everything
# Импортируем всё
from drawzero import *

# Red rectangle with upper left corner at (50, 150) and width = 900, height = 700
# Красный прямоугольник с левым верхнем углом в точке(50, 150), шириной 900 и высотой 700
rect('red', (50, 150), 900, 700)

# Straight orange line from (100, 500) to (900, 500)
# Оранжевая прямая линия из точки (100, 500) в точку (900, 500)
line('orange', (100, 500), (900, 500))

# Centered text
# Центрированный текст
text('green', 'Hello world!', (500, 250), fontsize=72)
text('blue', 'Привет, мир!', (500, 750), fontsize=72)

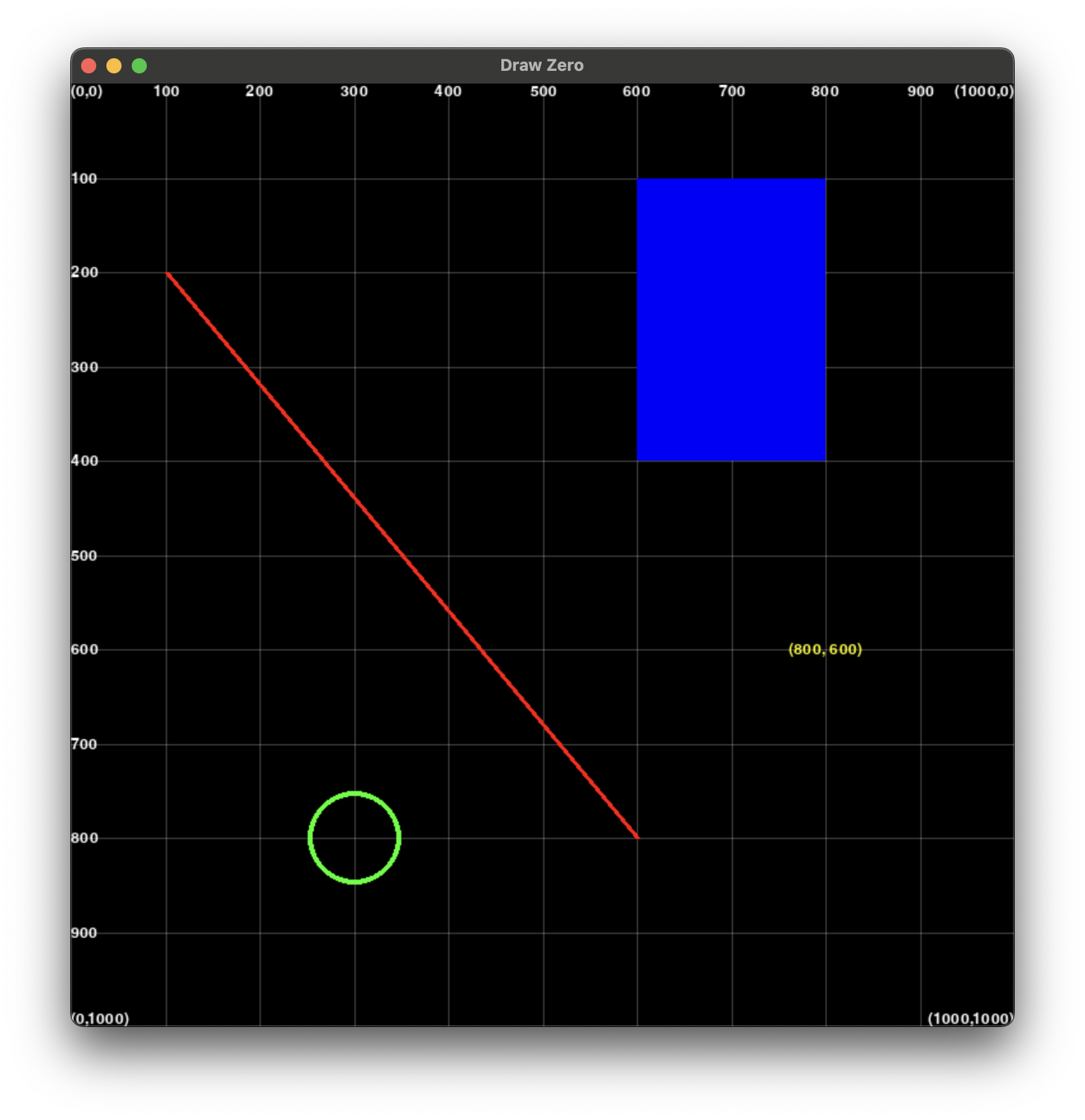

01_grid_and_coordinates.py

01_grid_and_coordinates.py

from drawzero import *

# Canvas is always 1000×1000
# Размер холста всегда 1000×1000

# Coordinate grid
# Координатная сетка для упрощения рисования
grid()

# (100, 200) -> (600, 800)
line('red', (100, 200), (600, 800))

# ┌─ at (600, 100), width=200, height=300
filled_rect('blue', (600, 100), 200, 300)

# Center at (300, 800), radius = 50
circle('green', (300, 800), 50)

# Center of text at (800, 600)
text('yellow', '(800, 600)', (800, 600))

Using Loops and Colors

Learn how to use loops to create more complex patterns and how to work with different colors.

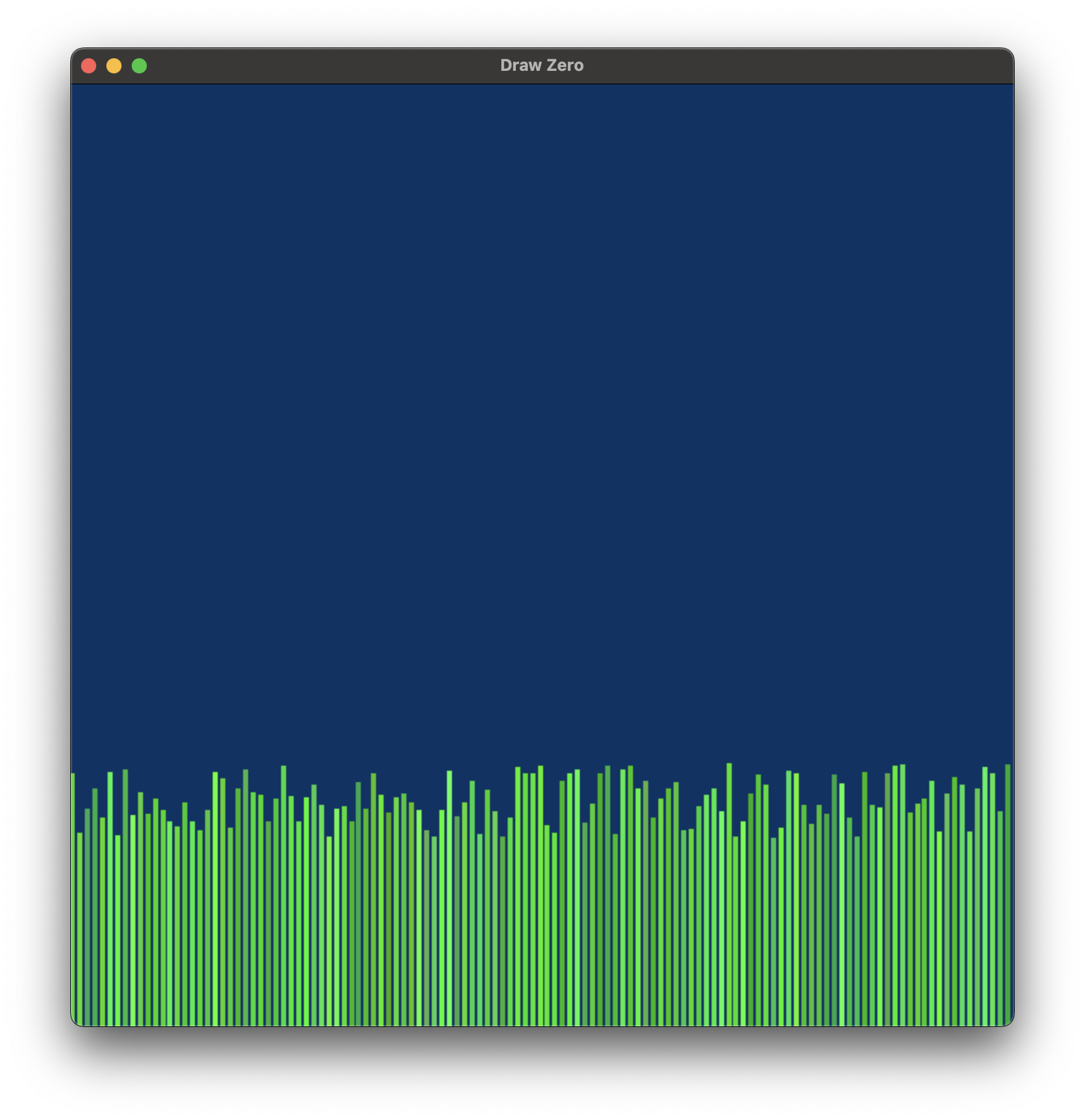

02_loops_and_rgb_colors.py

02_loops_and_rgb_colors.py

from drawzero import *
from random import randint, seed

# Fill with color #003366 (Dark midnight blue)
# Заливка цветом #003366 (Dark midnight blue)
fill('#003366')

# Draw a vertical line every 8 "pixels"
# Будем рисовать линию через каждые 8 пунктов
for x in range(0, 1000, 8):
    # Color is defined by 3 components: red, greed and blue. Take them at random
    # Каждый цвет состоит из трёх компонент: красной, зелёной и синей. Выбираем их случайно
    red = randint(0, 90)
    green = 255 - randint(0, 90)
    blue = randint(0, 90)
    random_green_color = (red, green, blue)

    # Take line height at random too.
    # Высота тоже случайная
    height = 200 + randint(0, 80)

    # 1000 — is the bottom of the canvas
    # 1000 самый низ экрана
    line(random_green_color, (x, 1000 - height), (x, 1000))

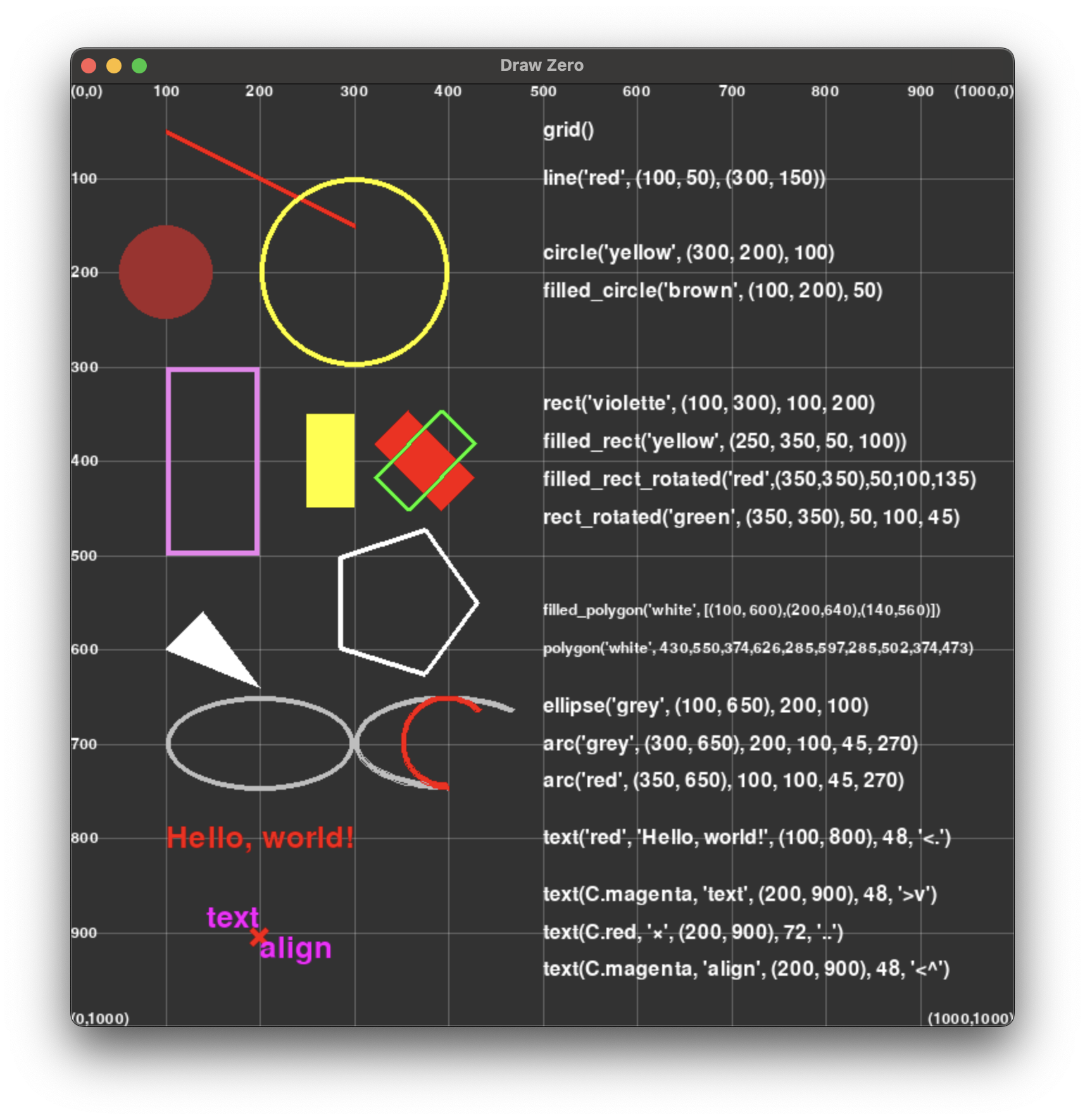

03_simple_objects.py

03_simple_objects.py

from drawzero import *

# All shapes

# Fill with color rgb=(50, 50, 50)
fill((50, 50, 50))

# Grid
grid()
text('white', "grid()", (500, 50), 32, '<.')

# Straight line
line('red', (100, 50), (300, 150))
text('white', "line('red', (100, 50), (300, 150))", (500, 100), 32, '<.')

# Circles
circle('yellow', (300, 200), 100)
filled_circle('brown', (100, 200), 50)
text('white', "circle('yellow', (300, 200), 100)", (500, 200 - 20), 32, '<.')
text('white', "filled_circle('brown', (100, 200), 50)", (500, 200 + 20), 32, '<.')

# Rectangles
rect('violet', (100, 300), 100, 200)
filled_rect('yellow', (250, 350, 50, 100))  # tuple[x,y,w,h] is also OK
filled_rect_rotated('red', (350, 350), 50, 100, 135)
rect_rotated('green', (350, 350), 50, 100, 45)
text('white', "rect('violette', (100, 300), 100, 200)", (500, 400 - 40 - 20), 32, '<.')
text('white', "filled_rect('yellow', (250, 350, 50, 100))", (500, 400 - 20), 32, '<.')
text('white', "filled_rect_rotated('red',(350,350),50,100,135)", (500, 400 + 20), 32, '<.')
text('white', "rect_rotated('green', (350, 350), 50, 100, 45)", (500, 400 + 40 + 20), 32, '<.')

# Polygons
filled_polygon('white', [(100, 600), (200, 640), (140, 560)])  # list oftuples
polygon('white', 430, 550, 374, 626, 285, 597, 285, 502, 374, 473)  # or just flattened
text('white', "filled_polygon('white', [(100, 600),(200,640),(140,560)])", (500, 600 - 40), 24, '<.')
text('white', "polygon('white', 430,550,374,626,285,597,285,502,374,473)", (500, 600), 24, '<.')

# Ellipsis and arcs
ellipse('grey', (100, 650), 200, 100)
arc('grey', (300, 650), 200, 100, start_angle=45, stop_angle=270)
arc('red', (350, 650), 100, 100, start_angle=45, stop_angle=270)
text('white', "ellipse('grey', (100, 650), 200, 100)", (500, 700 - 40), 32, '<.')
text('white', "arc('grey', (300, 650), 200, 100, 45, 270)", (500, 700), 32, '<.')
text('white', "arc('red', (350, 650), 100, 100, 45, 270)", (500, 700 + 40), 32, '<.')

# Text
text('red', 'Hello, world!', (100, 800), 48, '<.')
text('white', "text('red', 'Hello, world!', (100, 800), 48, '<.')", (500, 800), 32, '<.')

text('magenta', 'text', (200, 900), 48, '>v')
text('red', '×', (200, 900), 72, '..')
text('magenta', 'align', (200, 900), 48, '<^')
text('white', "text(C.magenta, 'text', (200, 900), 48, '>v')", (500, 860), 32, '<.')
text('white', "text(C.red, '×', (200, 900), 72, '..')", (500, 900), 32, '<.')
text('white', "text(C.magenta, 'align', (200, 900), 48, '<^')", (500, 940), 32, '<.')

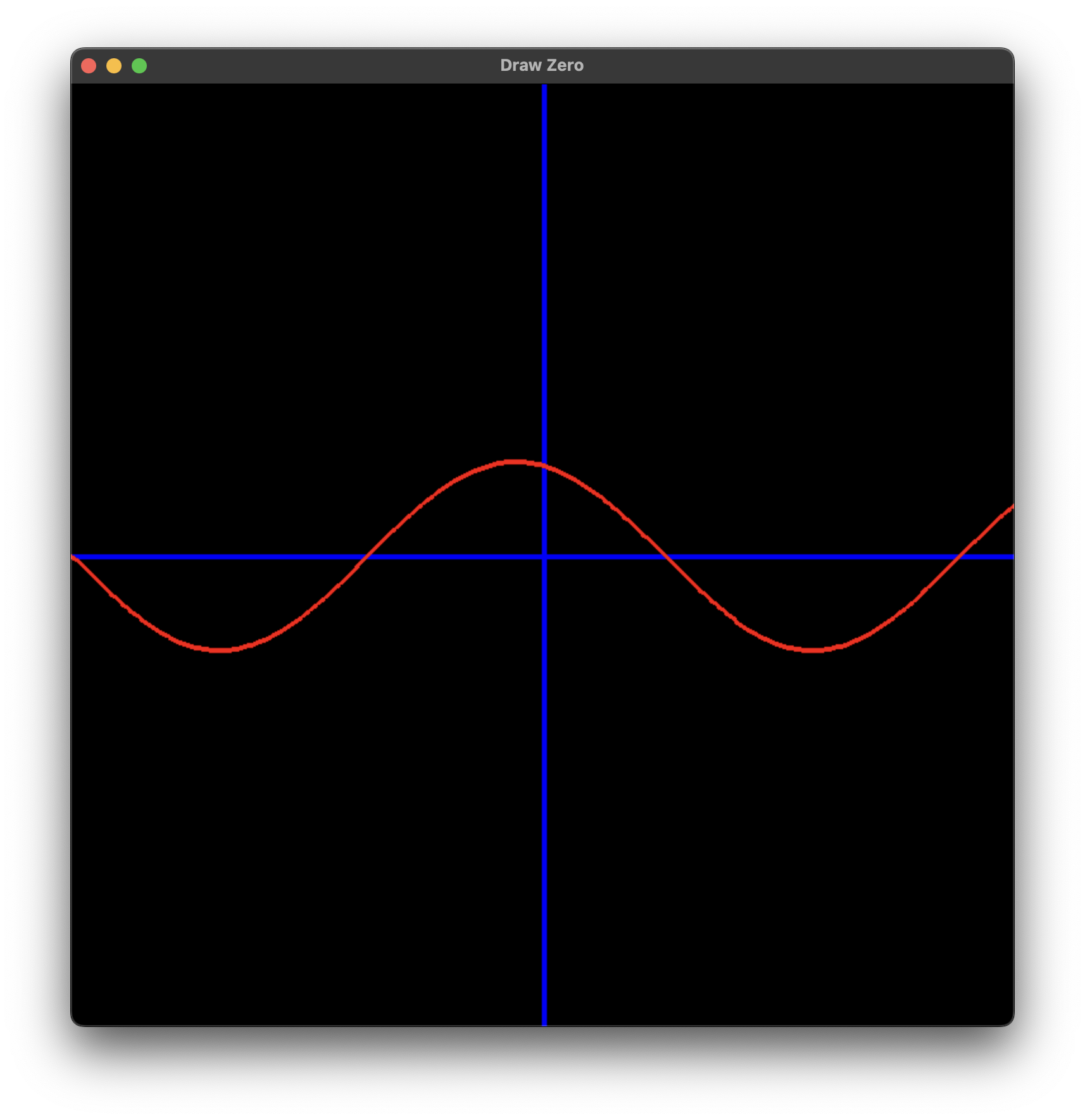

04_loops_sin_plot.py

04_loops_sin_plot.py

from drawzero import *
from math import sin

line('blue', 0, 500, 1000, 500)
line('blue', 500, 0, 500, 1000)

STEP = 4
SCALE = 100
for x1 in range(0, 1000, STEP):
    y1 = 500 + SCALE * sin(x1 / SCALE)
    x2 = x1 + STEP
    y2 = 500 + SCALE * sin(x2 / SCALE)
    line('red', (x1, y1), (x2, y2))

Points and Turtle-style Graphics

The Pt class allows for vector math and turtle-like drawing commands.

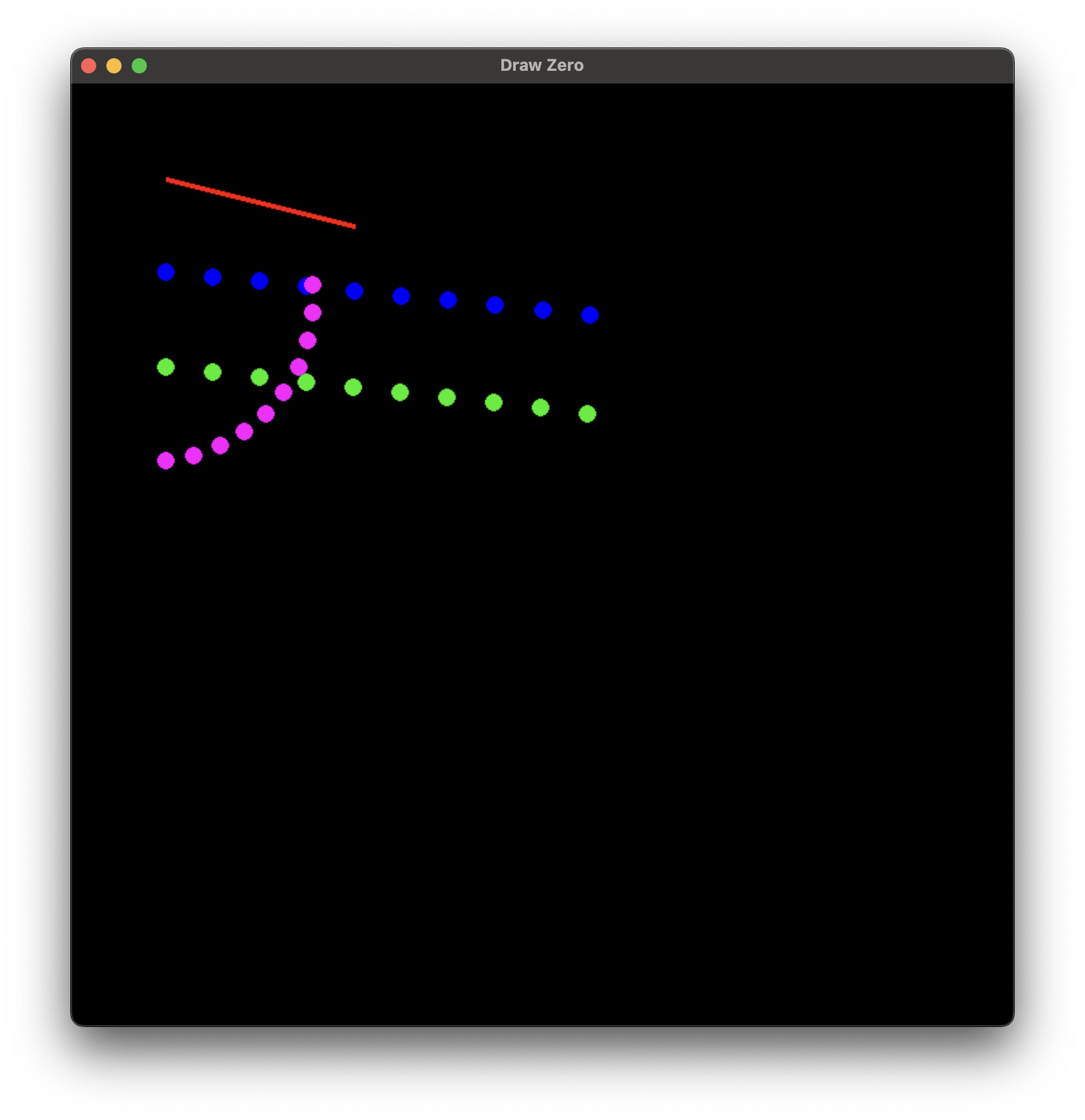

05_points.py

05_points.py

from drawzero import *

# just coordinates
A = Pt(100, 100)
B = Pt(300, 150)
line(C.red, A, B)

# A point which acts as 2-d vector and as a Turtle
# Pt(x=0.0, y=0.0, *, heading=0.0)
#
# Provides (for a, b — points, k number):
#   * arithmetic
#     a+b — vector addition
#     a-b — vector subtraction
#     k*a and a*k — multiplication with scalar
#     abs  — absolute value of a
#     +a, -a

# arithmetic
A = Pt(100, 200)
dx = Pt(50, 5)
for i in range(10):
    filled_circle(C.blue, A + dx * i, radius=10)

#   * turtle-style movement
#     forward — Move the point forward by the specified distance.
#     backward — Move the point backward by distance.
#     right — Turn point right by angle degrees.
#     left — Turn point left by angle degrees.
#     goto — Move point to an absolute position.
#     rotate_around — Rotate around given point by angle degrees.
#     move_towards — Move towards the given point by the specified distance.
#     reset, home — Move point to the origin - coordinates (0,0), set heading=0
#     setx — Set the point's first coordinate to x
#     sety — Set the point's second coordinate to y
#     setheading — Set the point's heading

A = Pt(100, 300)
B = Pt(1000, 400)
for i in range(10):
    filled_circle(C.green2, A, radius=10)
    A.move_towards(50, B)

A = Pt(100, 400)
for i in range(10):
    filled_circle(C.magenta, A, radius=10)
    A.left(10).forward(30)

#   * information
#     position — Return the point's current location (x,y), as a tuple.
#     x, xcor — Return the point's x coordinate.
#     y, ycor — Return the point's y coordinate
#     heading — Return the point's heading
#     distance — Return the distance between points
#     towards — Return the angle towards point
#   * deep copy
#     copy — a clone of point

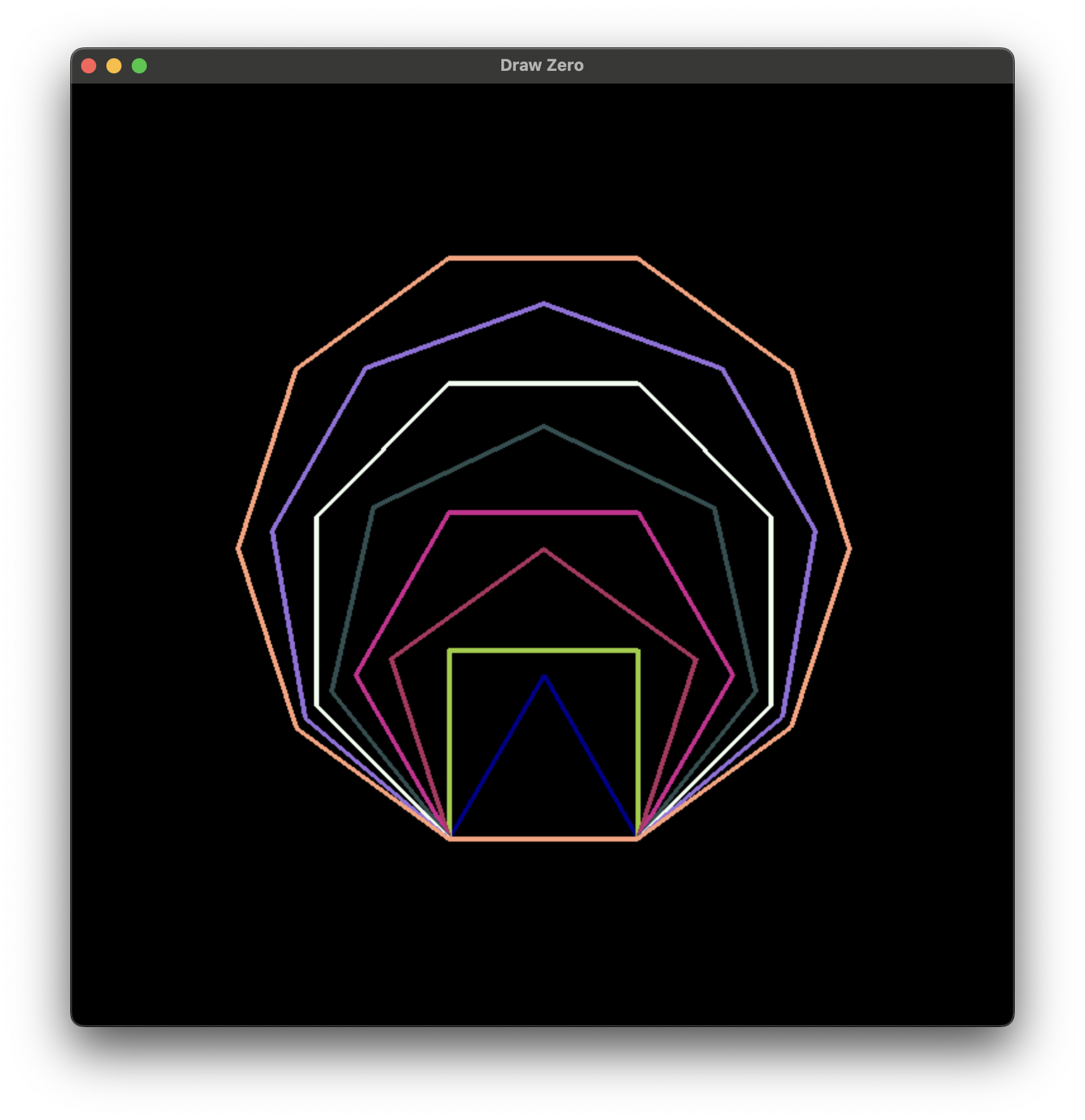

06_turtle_style.py

06_turtle_style.py

from drawzero import *

colors = [C.darkslategrey, C.dimgrey, C.slateblue, C.darkblue, C.yellowgreen, C.maroon,
          C.violetred, C.darkslategray, C.honeydew, C.mediumpurple, C.lightsalmon]

# Drawing regular polygons for n from 3 to 10
# Рисуем правильные треугольник (n=3), четырёхугольник и т.д. до десятиугольник
for n in range(3, 11):
    cur = Pt(600, 800)
    # Drawing n lines for regular polygon
    # Каждую сторону рисуем отдельно
    for i in range(n):
        prev = cur.copy()
        # How to get next point? We clone the old one, rotate left and move forward a bit
        # Чтобы получить новую вершину, мы клонируем старую, поворачиваемся и двигаемся вперёд
        cur.left(360 / n)
        cur.forward(200)
        line(colors[n], prev, cur)

Animation

Bring your drawings to life with animations.

07_animation_circles.py

07_animation_circles.py

from drawzero import *

# Animations are straightforward
for i in range(0, 60 * 5, 3):
    # Take color at "random"
    # Выбираем цвет псевдослучайно
    color = (i % 255, (19 * i) % 255, (91 * i) % 255)
    x = 100 + 2 * i
    y = 100 + i // 5
    r = 20 + 4 * (i % 5)
    circle(color, (x, y), r)
    # Sleep for 1/30 second
    # Самое главное для анимации — ждём 1/30 секунды
    tick()

08_animation_traffic_light.py

08_animation_traffic_light.py

from drawzero import *

# С — is an object with colors as attributes.
# С — специальный объект, у которого есть атрибуты — предопределённые цвета
# https://www.pygame.org/docs/ref/color_list.html
red_on = C.red
red_off = C.red4
yellow_on = C.yellow
yellow_off = C.yellow4
green_on = C.green
green_off = C.green4

fill(C.white)


def traf_light(red, yellow, green):
    """Function to draw signals with given colors
    """
    filled_rect(C.black, (400, 300, 200, 480))
    filled_circle(green, (500, 680), 60)
    filled_circle(yellow, (500, 540), 60)
    filled_circle(red, (500, 400), 60)


for i in range(3):
    traf_light(red_on, yellow_off, green_off)
    sleep(1)
    traf_light(red_off, yellow_on, green_off)
    sleep(1)
    traf_light(red_off, yellow_off, green_on)
    sleep(1)
    traf_light(red_off, yellow_on, green_off)
    sleep(1)

09_animation_rectangles.py

09_animation_rectangles.py

"""
In this example we use Pt class for turtle-like coordinate manipulations.
Используем класс Pt, позволяющий менять координаты в "черепашьем" стиле
"""
from drawzero import *

screen_center = Pt(500, 500)

small_rect_size = Pt(50, 30)
small_rect_center = screen_center + Pt(300, 0)

big_rect_size = Pt(100, 80)
big_rect_center = screen_center.copy()
for i in range(720):
    # First we make all calculations for the next frame

    # Rotate the big rectangle left by 3 degrees
    big_rect_center.left(3)
    # Line from the center outside the canvas using big rect heading
    laser = big_rect_center.copy().forward(700)
    # Rotate the small rect around the screen center for 1 degree
    small_rect_center.rotate_around(1, screen_center)
    # Rotate the small rect by 5 degrees
    small_rect_center.right(5)

    # Sleep 1/30 second
    tick()
    # No we clear the canvas and draw the next frame
    clear()

    # We need to subtract size/2 to get left upper rect position
    filled_rect_rotated(C.green, big_rect_center - big_rect_size / 2, big_rect_size, angle=big_rect_center.heading)
    # Sometimes we draw laser
    if i % 37 <= 4:
        line(C.orange, screen_center, laser, line_width=10, alpha=140)
    # Transparent small rectangle orbit
    circle(C.yellow, screen_center, 300, line_width=1, alpha=50)
    filled_rect_rotated(C.red, small_rect_center - small_rect_size / 2, small_rect_size, angle=small_rect_center.heading)
    circle(C.violet, screen_center, 10)

10_animation_planets.py

10_animation_planets.py

from drawzero import *
from math import sin, cos, pi

earth_orbit = 400
earth_radius = 30
earth_rot_step = 2 * pi / 360
moon_orbit = 100
moon_radius = 10
moon_rot_step = 2 * pi / 60

for i in range(360 * 2):
    # First we make all calculations for the next frame
    e_x = 500 + earth_orbit * cos(earth_rot_step * i)
    e_y = 500 + earth_orbit * sin(earth_rot_step * i)
    m_x = e_x + moon_orbit * cos(moon_rot_step * i)
    m_y = e_y + moon_orbit * sin(moon_rot_step * i)

    # Sleep 1/30 second
    tick()
    # No we clear the canvas and draw the next frame
    clear()

    filled_circle(C.red, (500, 500), 100)
    filled_circle(C.blue, (e_x, e_y), earth_radius)
    filled_circle(C.yellow, (m_x, m_y), moon_radius)

Advanced Drawing

Explore more advanced features like transparency, image rendering, and color gradients.

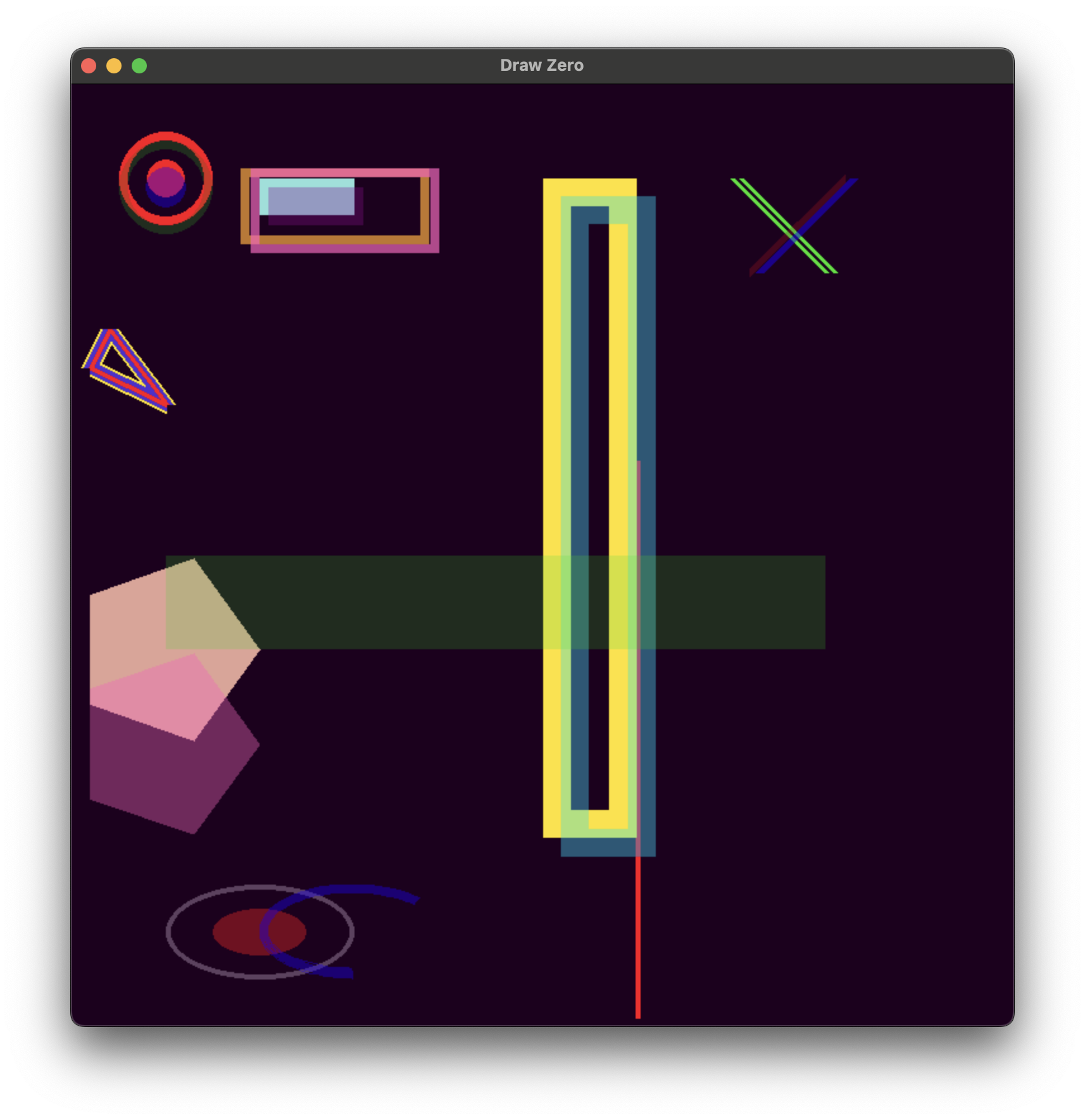

11_transparency_and_line_width.py

11_transparency_and_line_width.py

from drawzero import *

filled_circle('red', (100, 100), 20)
# Set line_width to change line_width
circle('red', (100, 100), 50, line_width=10)
# Set alpha from 0 to 255 to use transparency
filled_circle('blue', (100, 110), 22, alpha=100)
# Or user RGBA for color (RGBA stands for red green blue alpha)
circle((0, 255, 0, 50), (100, 110), 50, line_width=10)

filled_rect(C.aquamarine, (200, 100), 100, 40)
filled_rect(C.darkmagenta, (210, 110), 100, 40, alpha=80)
rect(C.darkgoldenrod, (180, 90), 200, 80, line_width=10)
rect(C.hotpink, (190, 90), 200, 90, alpha=180, line_width=10)

line('red', 600, 400, 600, 990)

polygon('yellow', [(20, 300), (100, 340), (40, 260)], line_width=20)
polygon((0, 0, 255, 200), [(20, 300), (100, 340), (40, 260)], line_width=15)
polygon('red', [(20, 300), (100, 340), (40, 260)])

filled_polygon('burlywood', 200, 600, 130, 504, 20, 542, 20, 658, 130, 696)
filled_polygon(C.hotpink, 200, 700, 130, 604, 20, 642, 20, 758, 130, 796, alpha=100)

line(C.green, (700, 100), (800, 200))
line(C.green, (710, 100), (810, 200), line_width=5)
line(C.red, (820, 100), (720, 200), line_width=10, alpha=50)
line(C.blue, (830, 100), (730, 200), line_width=10, alpha=128)

# Alpha channel is straightforward
rect('yellow', (500, 100), 100, 700, line_width=30, alpha=255)  # via alpha
rect('#00FFFF', (520, 120), 100, 700, line_width=30, alpha=100)  # via alpha
filled_rect((0, 255, 0, 50), (100, 500), 700, 100)  # via rgba

ellipse('grey', (100, 850), 200, 100, alpha=100)
filled_ellipse('red', (100 + 50, 850 + 25), 100, 50, alpha=100)
arc('blue', (200, 850), 200, 100, start_angle=45, stop_angle=270, alpha=100, line_width=10)

fill(C.magenta, alpha=30)

12_images.py

12_images.py

from pathlib import Path
from drawzero import *

this_file_dir = Path(__file__).parent.absolute()

image(this_file_dir / 'cat.png', (0, 0))
image(this_file_dir / 'cat.png', (500, 500), width=500)

image(this_file_dir / 'cat.png', (100, 600), width=200, alpha=128)
image(this_file_dir / 'cat.png', (200, 700), width=200, alpha=128)
image(this_file_dir / 'cat.png', (300, 800), width=200, alpha=128)

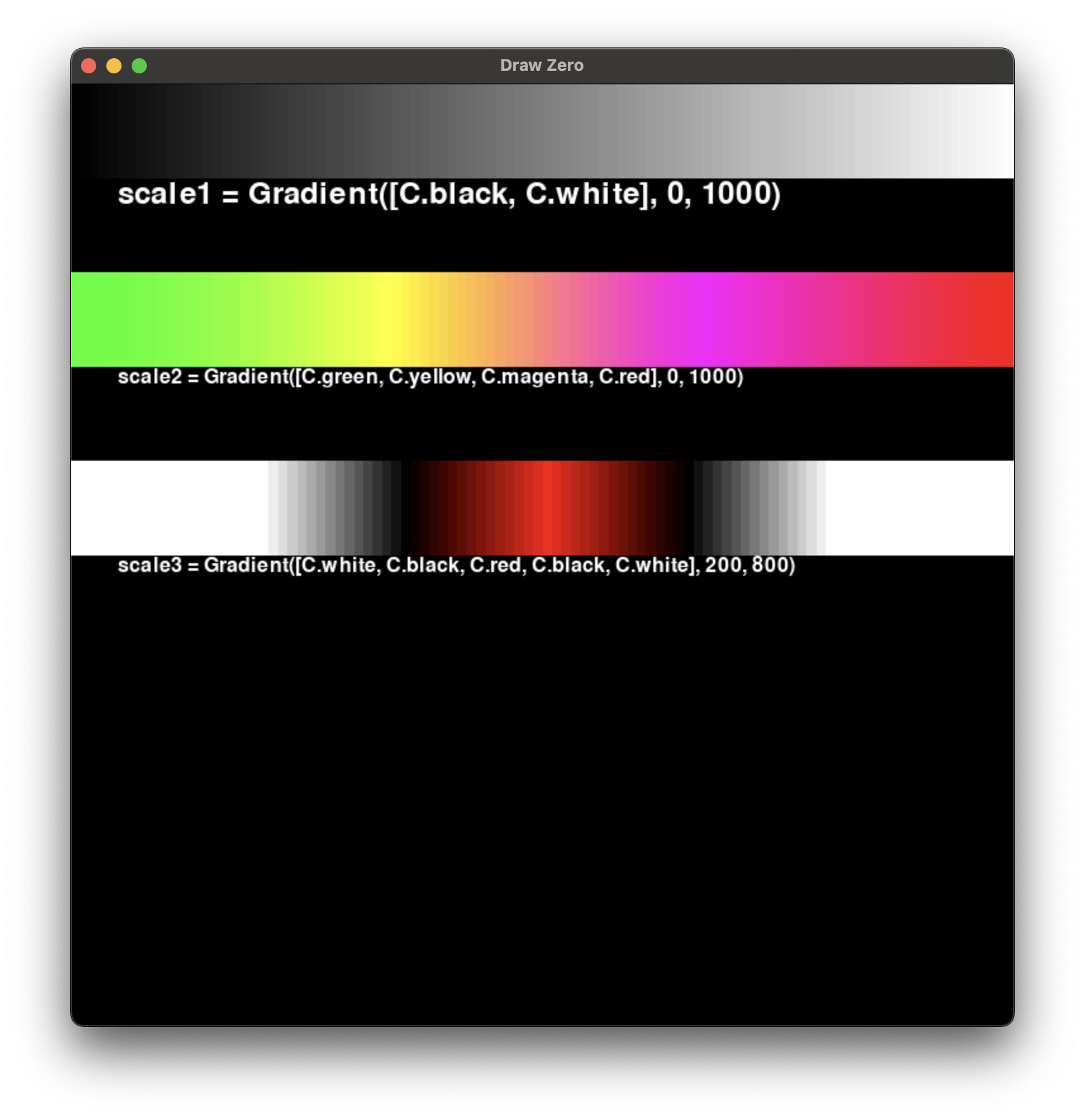

13_gradients.py

13_gradients.py

from drawzero import *


scale1 = Gradient([C.black, C.white], 0, 1000)
for x in range(0, 1000, 10):
    filled_rect(scale1(x), (x, 0), 10, 100)
text(C.white, 'scale1 = Gradient([C.black, C.white], 0, 1000)', (50, 100), 48, '<^')

scale2 = Gradient([C.green, C.yellow, C.magenta, C.red], 0, 1000)
for x in range(0, 1000, 10):
    filled_rect(scale2(x), (x, 200), 10, 100)
text(C.white, 'scale2 = Gradient([C.green, C.yellow, C.magenta, C.red], 0, 1000)', (50, 300), 32, '<^')

scale3 = Gradient([C.white, C.black, C.red, C.black, C.white], 200, 800)
for x in range(0, 1000, 10):
    filled_rect(scale3(x), (x, 400), 10, 100)
text(C.white, 'scale3 = Gradient([C.white, C.black, C.red, C.black, C.white], 200, 800)', (50, 500), 32, '<^')

Interactive Examples

Make your creations interactive by responding to keyboard and mouse input.

14_animation_close_vertex.py

14_animation_close_vertex.py

from drawzero import *
from random import randint, uniform
from itertools import combinations

NUM_POINTS = 100
MIN_DIST = 150
MAX_SPEED = 4
"""
Here we use Pt class for coordinates. It looks like a tuple with .x and .y methods (and many other).
Здесь мы используем класс Pt для работы с координатами. Почти кортеж, только изменяемый с атрибутами .x и .y
"""
points = [
    (Pt(randint(0, 1000), randint(0, 1000)), Pt(uniform(-MAX_SPEED, MAX_SPEED), uniform(-MAX_SPEED, MAX_SPEED)))
    for __ in range(NUM_POINTS)
]
scale = Gradient(['#5cc3e6', C.black], 0, MIN_DIST)

for i in range(30 * 30):
    # First we make all calculations for the next frame
    for pt, v in points:
        pt.x = (pt.x + v.x) % 1000
        pt.y = (pt.y + v.y) % 1000

    # Sleep 1/30 second
    tick()
    # No we clear the canvas and draw the next frame
    clear()

    for (pt1, v1), (pt2, v2) in combinations(points, r=2):
        dist = pt1.distance(pt2)
        if dist < MIN_DIST:
            color = scale(dist)
            line(color, pt1, pt2, line_width=1)
    for pt, v in points:
        filled_circle('blue', pt, 5)
    fps()

15_animation_firework.py

15_animation_firework.py

from drawzero import *
import random
import math
from typing import List

G = -2.0


class Particle:
    vx: float
    vy: float
    cx: float
    cy: float
    color: tuple
    alive: bool
    max_age: int
    age: int = 0
    GLOW = 20
    START_SPEED = 20
    MAX_SIZE = 4
    SCALE = Gradient([C.yellow, C.red], 0, GLOW)

    def __init__(p, x, y):
        random_angle = random.uniform(0, 2 * math.pi)
        random_speed = random.uniform(p.START_SPEED * 0.5, p.START_SPEED * 1.5)
        p.vx = math.cos(random_angle) * random_speed
        p.vy = math.sin(random_angle) * random_speed
        p.color = (random.randint(0, 255), random.randint(0, 255), random.randint(0, 255))
        p.cx, p.cy = x, y
        p.max_age = random.randint(5, p.GLOW)
        p.alive = True

    def draw(p):
        if p.age < p.GLOW:
            color = p.SCALE(p.age)
            filled_circle(color, (p.cx, p.cy), p.MAX_SIZE * (p.GLOW - p.age) / p.GLOW)

    def update(p):
        p.cx += p.vx
        p.cy += p.vy
        p.vy -= G
        p.age += 1
        if p.cy > 1000 or p.age > p.max_age:
            p.alive = False


class Firework:
    STICK_WIDTH = 5
    HANDLE = 200
    NEW_PARTICLES = 25
    HANDLE_COLOR = (64, 64, 64)
    POWDER_COLOR = (255, 255, 255)
    BURNT_COLOR = (102, 102, 102)

    def __init__(self, x, y, height, sleep=2):
        self.ticks = 0
        self.x = x
        self.y = y
        self.height = height
        self.particles: List[Particle] = []
        self.cur_top = 0
        self.sleep = sleep

    def update(self):
        self.ticks += 1
        if self.ticks < 30 * self.sleep or self.cur_top > self.height:
            return
        self.cur_top += 1
        self.update_particles()
        self.remove_particles()
        self.create_new_particles()

    def draw(self):
        self.draw_stick()
        for p in self.particles:
            p.draw()

    def remove_particles(self):
        last_good = -1
        for cur in range(len(self.particles)):
            p = self.particles[cur]
            if p.alive:
                last_good += 1
                self.particles[last_good] = p
        del self.particles[last_good + 1:]

    def update_particles(self):
        for p in self.particles:
            p.update()

    def create_new_particles(self):
        if self.cur_top < self.height - self.HANDLE:
            for __ in range(self.NEW_PARTICLES):
                self.particles.append(Particle(x=self.x, y=self.y + self.cur_top))

    def draw_stick(self):
        w = self.STICK_WIDTH
        real_top = min(self.cur_top, self.height - self.HANDLE)
        filled_rect(self.HANDLE_COLOR, (self.x - w / 2, self.y), w, self.height)
        filled_rect(self.BURNT_COLOR, (self.x - w / 2 - 2, self.y), w + 4, real_top)
        filled_rect(self.POWDER_COLOR, (self.x - w / 2 - 3, self.y + real_top), w + 6, self.height - self.HANDLE - real_top)

    def is_burnt(self):
        return self.cur_top > 0 and len(self.particles) == 0


firework1 = Firework(x=333, y=200, height=600, sleep=1)
firework2 = Firework(x=666, y=400, height=500, sleep=2)

while not firework1.is_burnt() or not firework2.is_burnt():
    firework1.update()
    firework2.update()
    tick()
    clear()
    firework1.draw()
    firework2.draw()
    fps()

sleep(1)
quit()

16_keyboard_and_mouse.py

16_keyboard_and_mouse.py

from drawzero import *

typed_letters = 'Typed: '
SIZE = 20
x = y = 500 - SIZE // 2

while True:
    # Mouse buttons events
    if mousebuttonsdown:
        x, y = mousebuttonsdown[0].pos
    # Keys which are still pressed
    keys = get_keys_pressed()
    dx = dy = 0
    if keys[K.LEFT] or keys[K.a]:
        dx = -5
    if keys[K.RIGHT] or keys[K.d]:
        dx = +5
    if keys[K.UP] or keys[K.w]:
        dy = -5
    if keys[K.DOWN] or keys[K.s]:
        dy = +5
    if keys[K.MOD_SHIFT] or keys[K.MOD_CTRL]:
        dx *= 4
        dy *= 4
    x += dx
    y += dy
    # Keyboard events
    for ev in keysdown:
        if ev.unicode:
            typed_letters += ev.unicode

    # Redraw everything
    clear()
    text(C.white, 'Press arrows to move square', (500, 70), 48)
    text(C.white, 'Press letters to type them', (500, 130), 48)
    text(C.white, 'Click mouse to move square', (500, 190), 48)
    text(C.green, typed_letters, (100, 250), 48, align='<.')
    filled_rect(C.red, x, y, SIZE, SIZE)
    filled_circle(C.yellow, mouse_pos(), 3)
    tick()

17_mouse_tube.py

17_mouse_tube.py

from drawzero import *

circles = []
tick()
scale = Gradient([C.gray10, C.blue, C.orange], 100, 500)
while True:
    x, y = mouse_pos()
    circles.append([x, y, 100])
    clear()
    for i in range(len(circles) - 1, -1, -1):
        x, y, r = circles[i]
        if r > 1000:
            circles.pop(i)
        else:
            circle(scale(r), (x, y), r, line_width=3)
            circles[i][2] += 10
    fps()
    tick()

Games

Build simple games using the DrawZero library.

18_game_stars.py

18_game_stars.py

from drawzero import *
from random import randint
from dataclasses import dataclass

from time import perf_counter
NUM_STARS = 300


@dataclass
class Star:
    x: float
    y: float
    z: float
    r: int
    color: tuple


def gen_star():
    '''Создать звезду'''
    x = randint(-1000000 // 2, 1000000 // 2)
    y = randint(1, 1000)
    z = randint(-1000000 // 2, 1000000 // 2)
    r = randint(10, 3000)
    color = (randint(0, 255), randint(0, 255), randint(0, 255))
    return Star(x, y, z, r, color)


def create_stars():
    '''Создать массив звёзд'''
    stars = []
    for i in range(NUM_STARS):
        stars.append(gen_star())
    return stars


def move_stars(stars, speed):
    '''Сдвинуть все звёзды
    Если звезда перестала попадать на экран, то заменяем её на новую'''
    Vx, Vy, Vz = speed
    for i, star in enumerate(stars):
        star.x += Vx
        star.y += Vy
        star.z += Vz
        if (
                not (1 < star.y < 1000)
                or not (-500 < star.x / star.y < 500)
                or not (-500 < star.x / star.y < 500)
        ):
            # Вообще это — так себе решение. Но частично работает
            stars[i] = gen_star()


def draw_stars(stars):
    '''Отрисовать все звёзды'''
    # Сортируем звёзды, чтобы те, которые ближе к экрану, отрисовывались позже
    stars.sort(key=lambda star: -star.y)
    for star in stars:
        y = star.y
        screen_x = 500 + star.x / y
        screen_y = 500 + star.z / y
        screen_r = star.r / y
        filled_circle(star.color, (screen_x, screen_y), screen_r*2)
    text('white', 'Press WASD or QE to move', (500, 5), 48, '.^')


def process_keys(pressed_keys, speed):
    '''Обрабатываем нажатия клавиш
    Используем WASD для вверх/вниз/влево/вправо и QE для вперёд/назад'''
    if pressed_keys[K.UP] or pressed_keys[K.w]:
        speed[2] += 100
    if pressed_keys[K.DOWN] or pressed_keys[K.s]:
        speed[2] -= 100
    if pressed_keys[K.LEFT] or pressed_keys[K.a]:
        speed[0] += 100
    if pressed_keys[K.RIGHT] or pressed_keys[K.d]:
        speed[0] -= 100
    if pressed_keys[K.q]:
        speed[1] -= 1
    if pressed_keys[K.e]:
        speed[1] += 1


# Здесь ставим размер экрана
stars = create_stars()
# Текущая скорость, стартуем с 0
speed = [0, 0, 0]
while True:
    # Заливаем всё чёрным
    fill((0, 0, 0))
    # Обрабатываем нажатия клавиш
    process_keys(get_keys_pressed(), speed)
    # Двигаем звёзды
    move_stars(stars, speed)
    # Рисуем звёзды
    draw_stars(stars)
    # Ждём 1/60 секунды
    tick()

19_game_colors.py

19_game_colors.py

from drawzero import *
import random
from time import time

COLORS = [('yellow', 'yellow'), ('green', 'green'), ('cyan', '#42aaff'), ('blue', '#0000ff'), ('purple', 'purple'),
          ('red', 'red'), ('orange', 'orange'), ('brown', 'brown'), ('gray', 'gray'), ('white', 'white'), ]


def gen_new():
    cur_word, color = random.choice(COLORS)
    corr = True
    if random.random() < 0.5:
        corr = False
        new_color = color
        while new_color == color:
            __, color = random.choice(COLORS)
    return cur_word, color, corr


score = 0
cur_timelimit = 4
cur_word, color, corr = gen_new()
cur_status = None
round_start = last_status_ts = time()
while True:
    cur_ts = time()
    time_left = round_start + cur_timelimit - cur_ts
    if time_left < 0:
        score -= 1
        cur_timelimit *= 1.02
        cur_word, color, corr = gen_new()
        round_start = last_status_ts = cur_ts
        cur_status = None
        time_left = cur_timelimit
    clear()
    text('white', f'Scores: {score}', (500, 50), 48)
    text('white', f'Double-click the left mouse button,', (500, 100), 32)
    text('white', f'if the word and color match, otherwise right-click', (500, 142), 32)
    text('white', f'{time_left:0.2f}s...', (500, 600), 48)
    text(color, cur_word, (500, 500), 120)
    if cur_status == 1:
        text('green', 'Match?', (500, 700), 48)
    elif cur_status == 3:
        text('red', 'Mismatch?', (500, 800), 48)
    # Ignore clicks for half a second after color change
    for ev in mousebuttonsdown:
        if cur_ts - last_status_ts > 0.3:
            if ev.button == cur_status:
                # User confirmed
                if (corr and cur_status == 1) or (not corr and cur_status == 3):
                    score += 1
                    cur_timelimit *= 0.95
                else:
                    score -= 1
                    cur_timelimit *= 1.02
                cur_word, color, corr = gen_new()
                round_start = last_status_ts = cur_ts
                cur_status = None
            elif ev.button in (1, 3):
                cur_status = ev.button
                last_status_ts = cur_ts
    tick()

20_game_racing.py

20_game_racing.py

from drawzero import *

cars_y = [540, 500, 460]
cars_x = [100, 100, 100]
ups = [K.w, K.i, K.UP]
downs = [K.s, K.k, K.DOWN]
lefts = [K.a, K.j, K.LEFT]
rights = [K.d, K.l, K.RIGHT]
colors = ['green', 'blue', 'yellow']
scores = [1000, 1000, 1000]

road = [500] * 30 + list(range(500, 700, 3)) + list(range(700, 900, 6)) + list(range(900, 100, -4)) + list(
    range(100, 500, 8))
road.extend(road)
road.extend(road)
WIDTH2 = 80
road_pos = 0
for i in 3, 2, 1:
    clear()
    text('green', 'READY? ' + str(i), (300, 400), 128)
    sleep(1)

while True:
    keys = get_keys_pressed()
    for i in range(len(cars_y)):
        if keys[ups[i]]:
            cars_y[i] -= 5
        if keys[downs[i]]:
            cars_y[i] += 5
        if keys[lefts[i]]:
            cars_x[i] -= 5
        if keys[rights[i]]:
            cars_x[i] += 5
    clear()
    for i in range(len(cars_y)):
        filled_rect(colors[i], (cars_x[i], cars_y[i] - 20), 80, 40, alpha=70)
    for i in range(100):
        line('red', i * 10, road[i + road_pos] - WIDTH2, i * 10 + 10, road[i + 1 + road_pos] - WIDTH2)
        line('red', i * 10, road[i + road_pos] + WIDTH2, i * 10 + 10, road[i + 1 + road_pos] + WIDTH2)
    for i in range(len(cars_y)):
        if cars_y[i] - 20 < road[cars_x[i] // 10 + road_pos] - WIDTH2:
            text(colors[i], 'Boom!', (300 + 200 * i, 10), 72)
            cars_y[i] = road[cars_x[i] // 10 + road_pos] - WIDTH2 + 20
            scores[i] -= 1
        elif cars_y[i] + 20 > road[cars_x[i] // 10 + road_pos] + WIDTH2:
            text(colors[i], 'Boom!', (300 + 200 * i, 10), 72)
            cars_y[i] = road[cars_x[i] // 10 + road_pos] + WIDTH2 - 20
            scores[i] -= 1
        text(colors[i], str(scores[i]), (300 + 200 * i, 100), 72)

    tick()
    road_pos += 1
    if road_pos > 1000:
        i = scores.index(max(scores))
        text('white', f'{colors[i]} is winner!', (150, 900), 128)
        tick()
        break
